Price From

$ 15,290

Power

13.13 hp at 9000 rpm

Max. Torque

12N·m/7000 r/min

Weight (KG)

135

Tech Specs

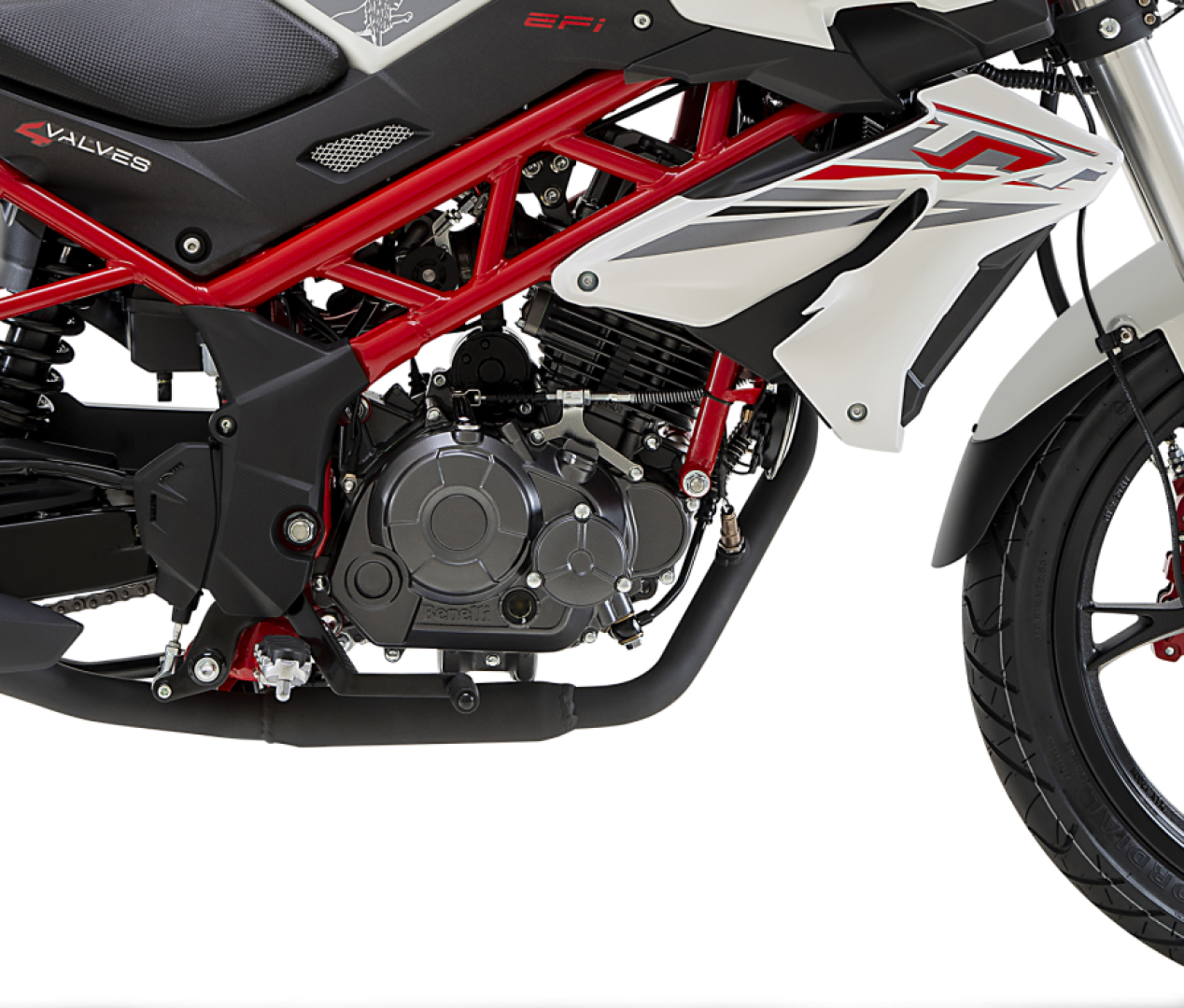

  • TYPE

    1-cylinder/4-stroke/4-valve

    Displacement (cc)

    150

    Bore x Stroke (mm)

    ø57.3×58

    Power

    13.13 hp at 9000 rpm

    Max torque

    12N·m/7000 r/min

    Compression ratio

    9.8:1

    Fuel system

    EFI

    Valve train

    SOHC

    Starter

    Electric & kick

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Air-cooled

    Ignition

    T.C.I.

  • Gearbox

    5-speed

    Final drive

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Steel trellis frame

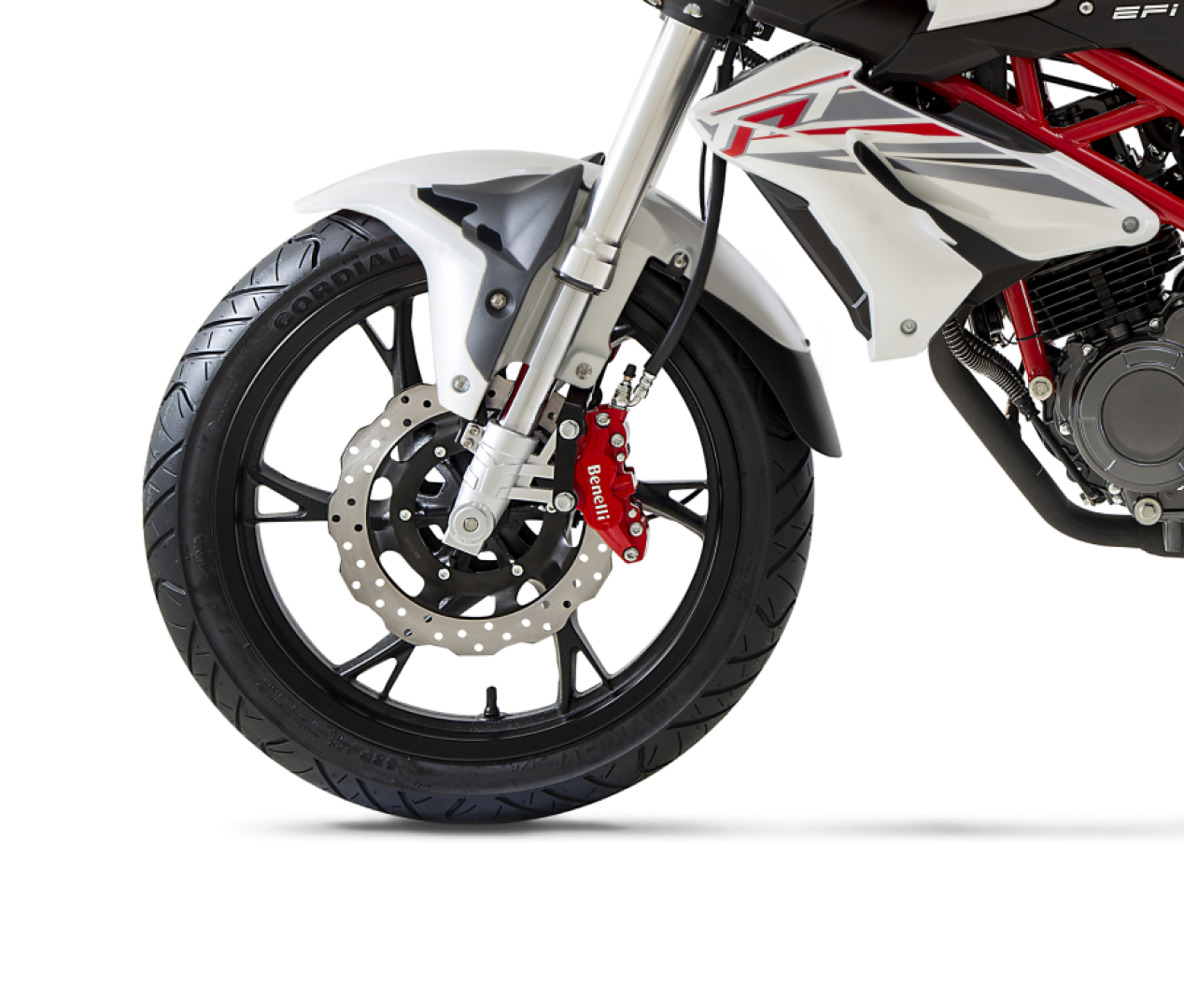

    Front wheel

    Aluminum alloy

    Front suspension

    35mm upside-down telescopic forks

    Front suspension travel (mm)

    110.5

    Front tyre

    CST 100/80-17

    Front brake

    Disc, 2-piston caliper

    Front brake diameter (mm)

    260

    Rear wheel

    Aluminum alloy

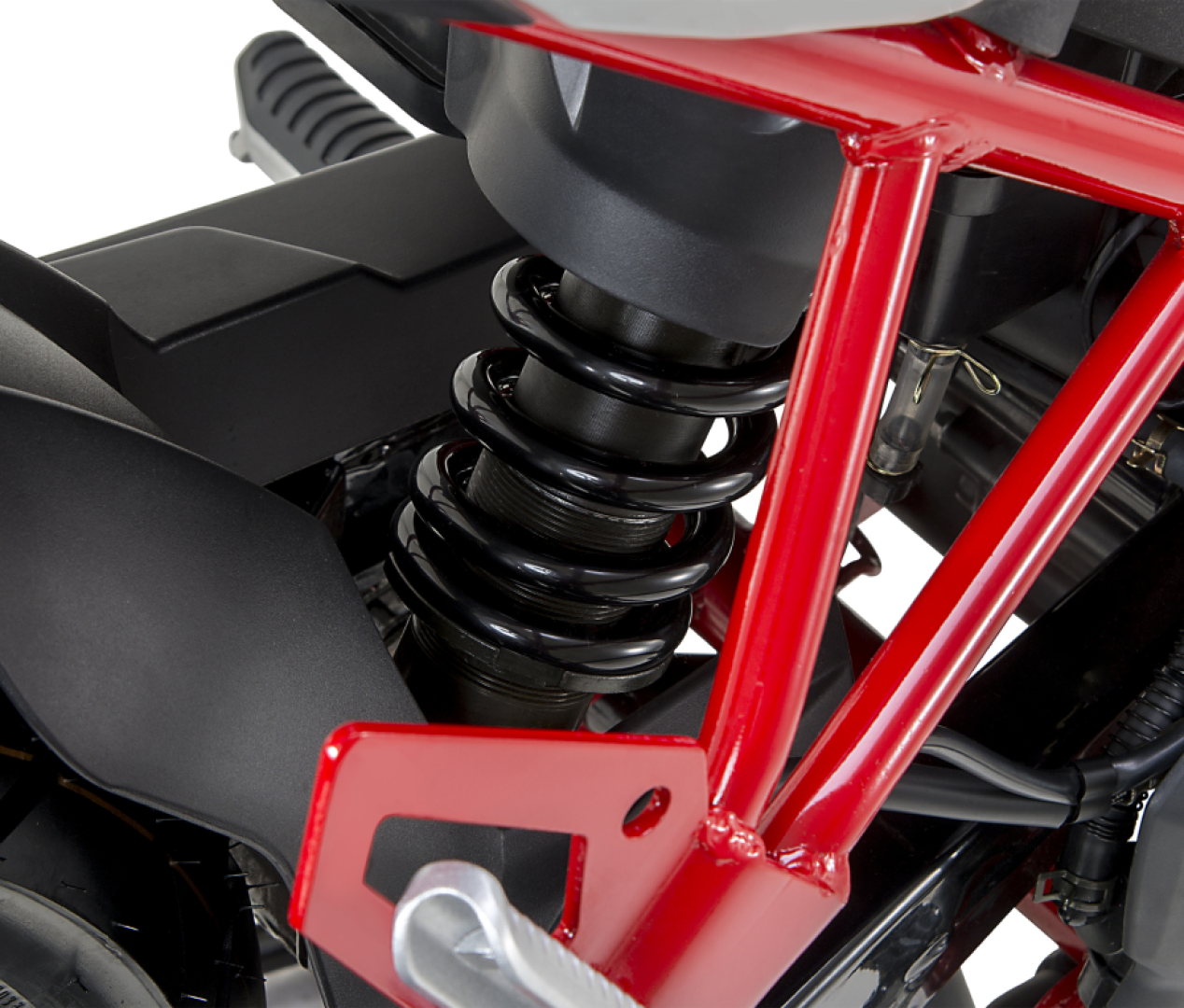

    Rear suspension

    Mono-shock-absorber, preload adjustable

    Rear suspension travel (mm)

    40

    Rear tyre

    CST 130/70-17

    Rear brake

    Disc, 2-piston caliper

    Rear brake diameter (mm)

    240

  • Curb weight (kg)

    135

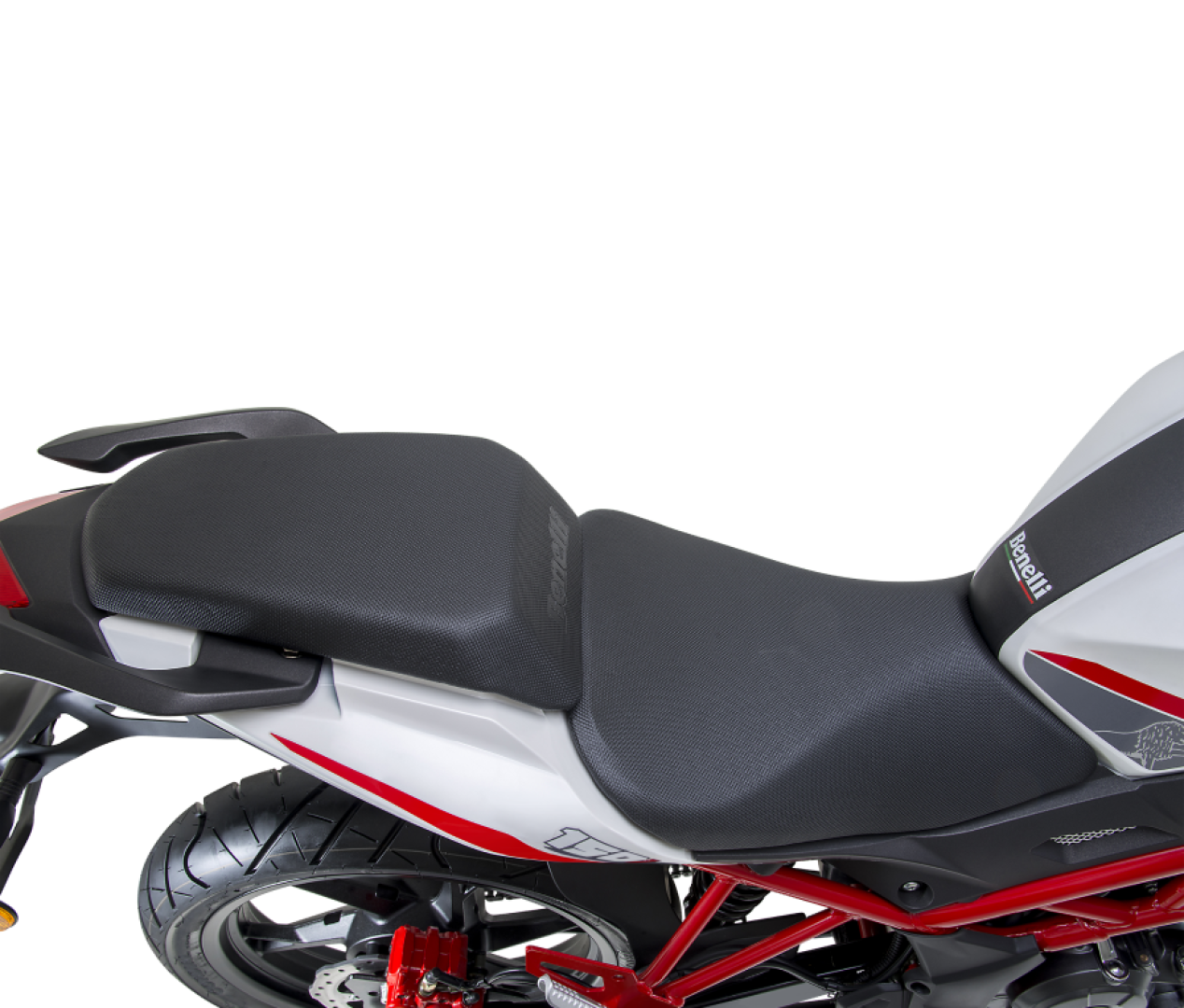

    Seat height (mm)

    780

    Overall length (mm)

    2050

    Overall width (mm)

    810

    Overall height (mm)

    1065

    Ground clearance (mm)

    190

    Wheelbase (mm)

    1360

    Fuel capacity (L)

    13.5

    Top speed (km/h)

    100

    Max load (kg)

    185

    Battery

    12V6Ah
