Cijena od

N/A

Snaga

51.5kW at 8000 r/min

Maks. obrtni moment

70N·m/6000 r/min

Suha težina (KG)

218

Tehničke specifikacije

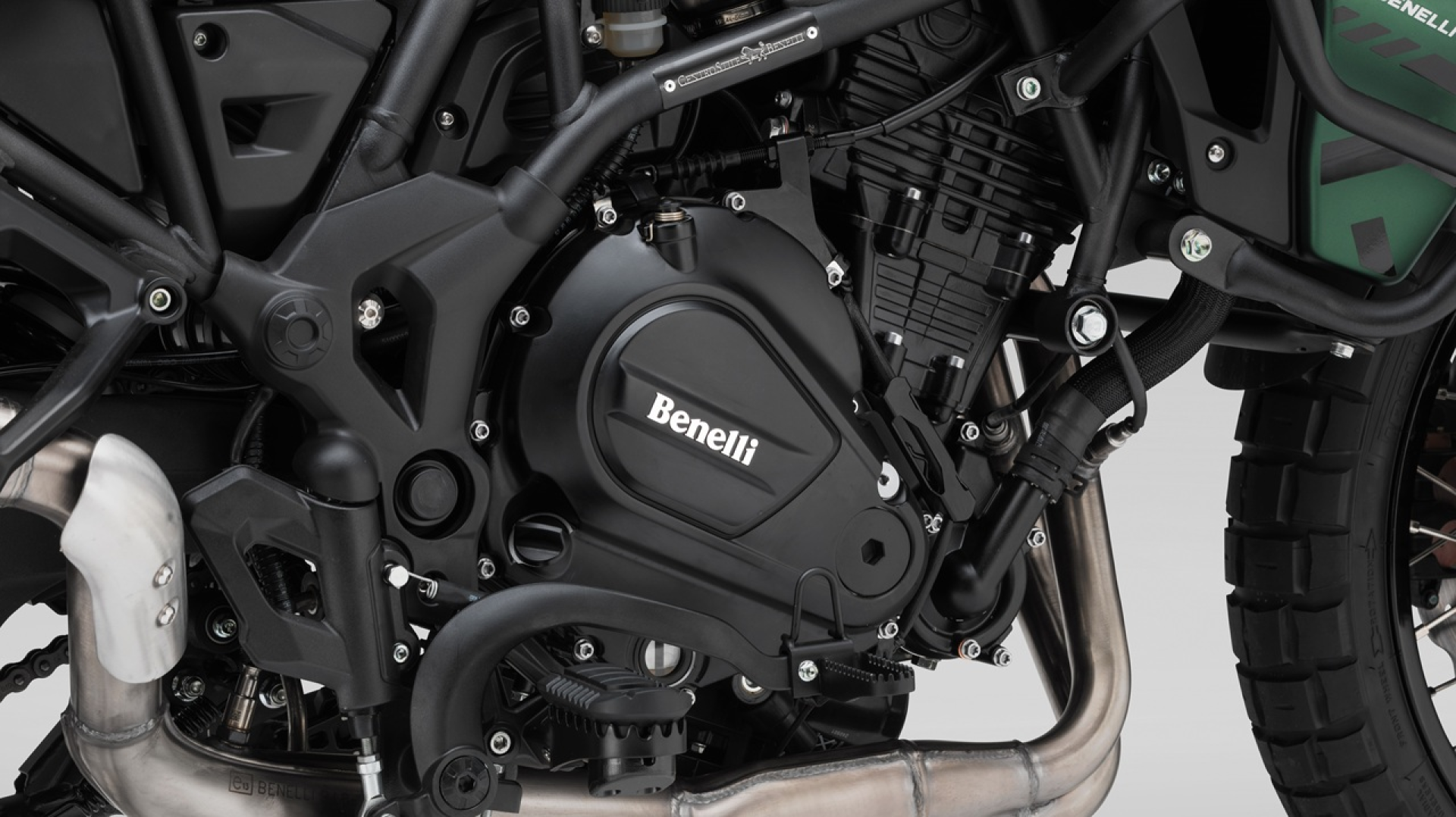

  • TYPE

    2-cylinder/4-stroke/8-valve

    Displacement (cc)

    698

    Bore x Stroke (mm)

    ø83×64.5

    Power

    51.5kW at 8000 r/min

    Max torque

    70N·m/6000 r/min

    Compression ratio

    11.6:1

    Fuel system

    EFI

    Valve train

    DOHC

    Starter

    Electric

    Lubrication system

    Forced lubrication with wet sump

    Cooling system

    Liquid-cooled

    Emissions (CO2)

    110 g/km (35 kW: 99 g/km)

    Consumption

    4,7 l/100 km (35 kW: 4,3 l/100 km)

  • Gearbox

    6-speed

    Final drive

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Trestle in steel tubes

    Front wheel

    Spokes

    Front suspension

    50mm upside-down telescopic forks

    Front suspension travel (mm)

    140

    Front tyre

    Pirelli Scorpion Rally STR (inner tube) 110/80-19" 59V

    Front brake

    Double disc with floating 2-pistons calipers

    Front brake diameter (mm)

    320

    Rear wheel

    Spoke

    Rear suspension

    Rear swing arm with central shock absorber, spring preload, hydraulic rebound and compression setting adjustable

    Rear suspension travel (mm)

    50 mm (rear wheel travel: 173 mm)

    Rear tyre

    Pirelli Scorpion Rally STR (inner tube) 150/70 - 17" 69V

    Rear brake

    Disc with single-piston floating brake caliper

    Rear brake diameter (mm)

    260

  • Curb weight (kg)

    218

    Seat height (mm)

    835

    Overall length (mm)

    2200

    Overall width (mm)

    925

    Overall height (mm)

    1480

    Ground clearance (mm)

    205

    Wheelbase (mm)

    1505

    Fuel capacity (L)

    20
