PVP*

N/A

Potência

56kW at 8500 r/min

Máximo. Torque

67N·m/6500 r/min

Peso seco (KG)

226

Especificações técnicas

  • TYPE

    2-cylinder/4-stroke/8-valve

    Displacement (cc)

    754

    Bore x Stroke (mm)

    ø88×62

    Power

    56kW at 8500 r/min

    Max torque

    67N·m/6500 r/min

    Compression ratio

    11.5:1

    Fuel system

    EFI

    Valve train

    DOHC

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Liquid-cooled

    Ignition

    T.C.I.

  • Gearbox

    6-speed

    Final drive

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Steel trellis frame

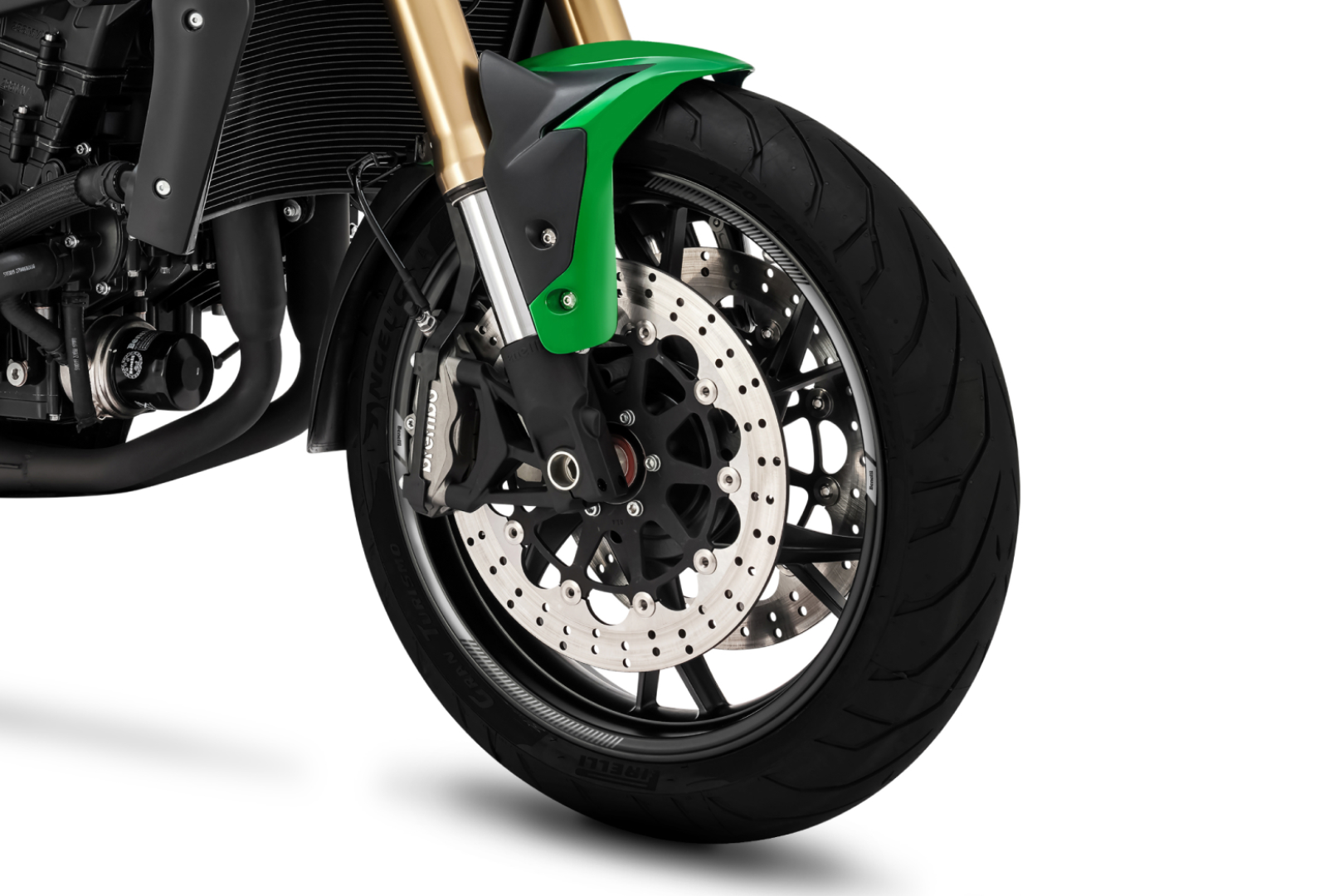

    Front wheel

    Aluminum alloy

    Front suspension travel (mm)

    130

    Front tyre

    120/70 ZR17

    Front brake

    Dual discs

    Front brake diameter (mm)

    320

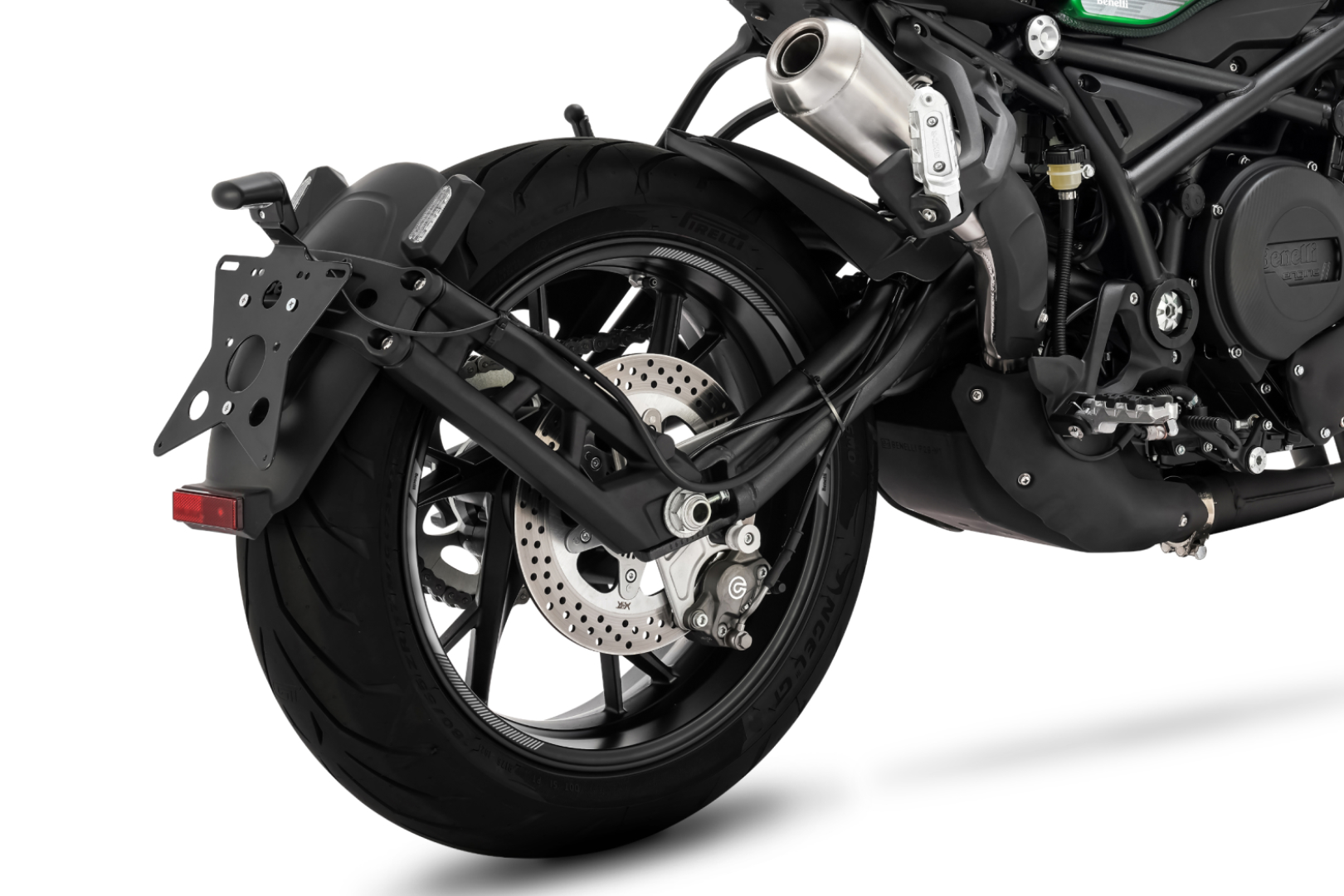

    Rear wheel

    Aluminum alloy

    Rear suspension

    Mono-shock-absorber

    Rear suspension travel (mm)

    60

    Rear tyre

    180/55 ZR17

    Rear brake

    Disc

    Rear brake diameter (mm)

    260

  • Dry weight (kg)

    226

    Seat height (mm)

    810

    Overall length (mm)

    2130

    Overall width (mm)

    810

    Overall height (mm)

    1100

    Ground clearance (mm)

    180

    Wheelbase (mm)

    1460

    Fuel capacity (L)

    14.5

    Top speed (km/h)

    190

    Max load (kg)

    180

    Battery

    12V8Ah
