Price From

N/A

Power

11.0 kW (15.0 hp) at 9500 rpm

Max. Torque

12,1 Nยทm/7000 r/min

Weight (KG)

133

Tech Specs

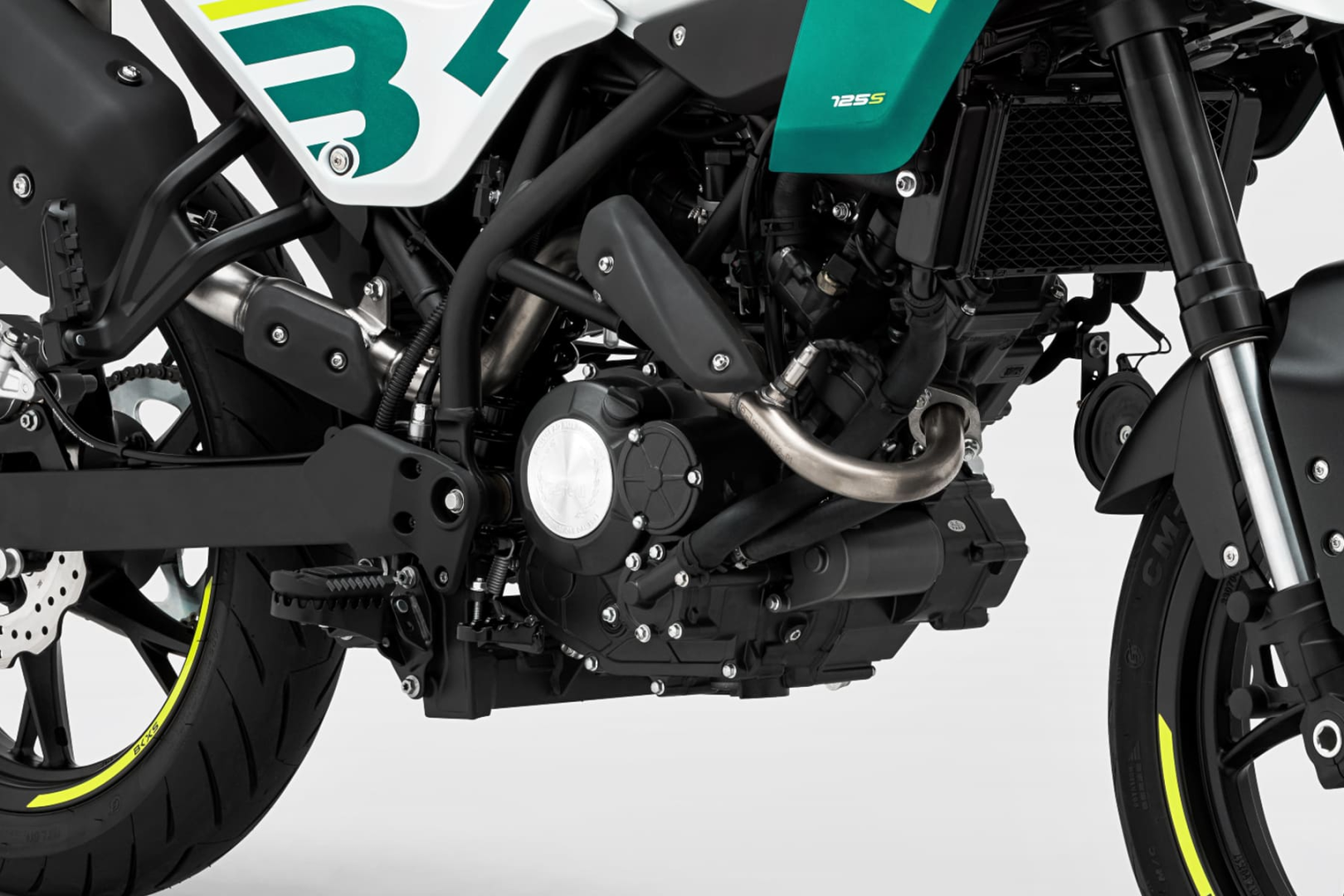

  • TYPE

    1-cylinder/4-stroke/4-valve

    Displacement (cc)

    125

    Bore x Stroke (mm)

    รธ54ร—54.5

    Power

    11.0 kW (15.0 hp) at 9500 rpm

    Max torque

    12,1 Nยทm/7000 r/min

    Compression ratio

    12.0:1

    Fuel system

    EFI

    Valve train

    SOHC

    Starter

    Electric

    Lubrication system

    Forced wet sump

    Cooling system

    Liquid-cooled

    Ignition

    BOSCH MOTRONIC MES 8.0

  • Gearbox

    6-speed

    Final drive

    Chain

    Clutch type

    Wet clutch

  • Frame

    Steel trestle in steel tubes

    Front wheel

    Aluminum alloy

    Front suspension

    41 mm upside-down forks full adjustable in spring preload and hydraulic brake rebound and compression

    Front tyre

    100/80โ€“17 M/C

    Front brake

    Single disks with 4 pistons calliper with and ABS

    Front brake diameter (mm)

    280

    Rear wheel

    Aluminum alloy

    Rear suspension

    Rear swing arm in steel, shock absorber with progressive link, adjustable in spring preload and hydraulic brake rebound

    Rear tyre

    130/70-17 M/C

    Rear brake

    Single disc with floating calliper single piston

    Rear brake diameter (mm)

    240

  • Curb weight (kg)

    133

    Seat height (mm)

    820

    Overall length (mm)

    2010

    Overall width (mm)

    910

    Overall height (mm)

    1135

    Ground clearance (mm)

    198

    Wheelbase (mm)

    1390

    Fuel capacity (L)

    12
