Preis ab (UVP)

N/A

Leistung

8.2kW at 9500 r/min

Max. Drehmoment

10N·m/7000 r/min

Trockengewicht (KG)

124

Technische Daten

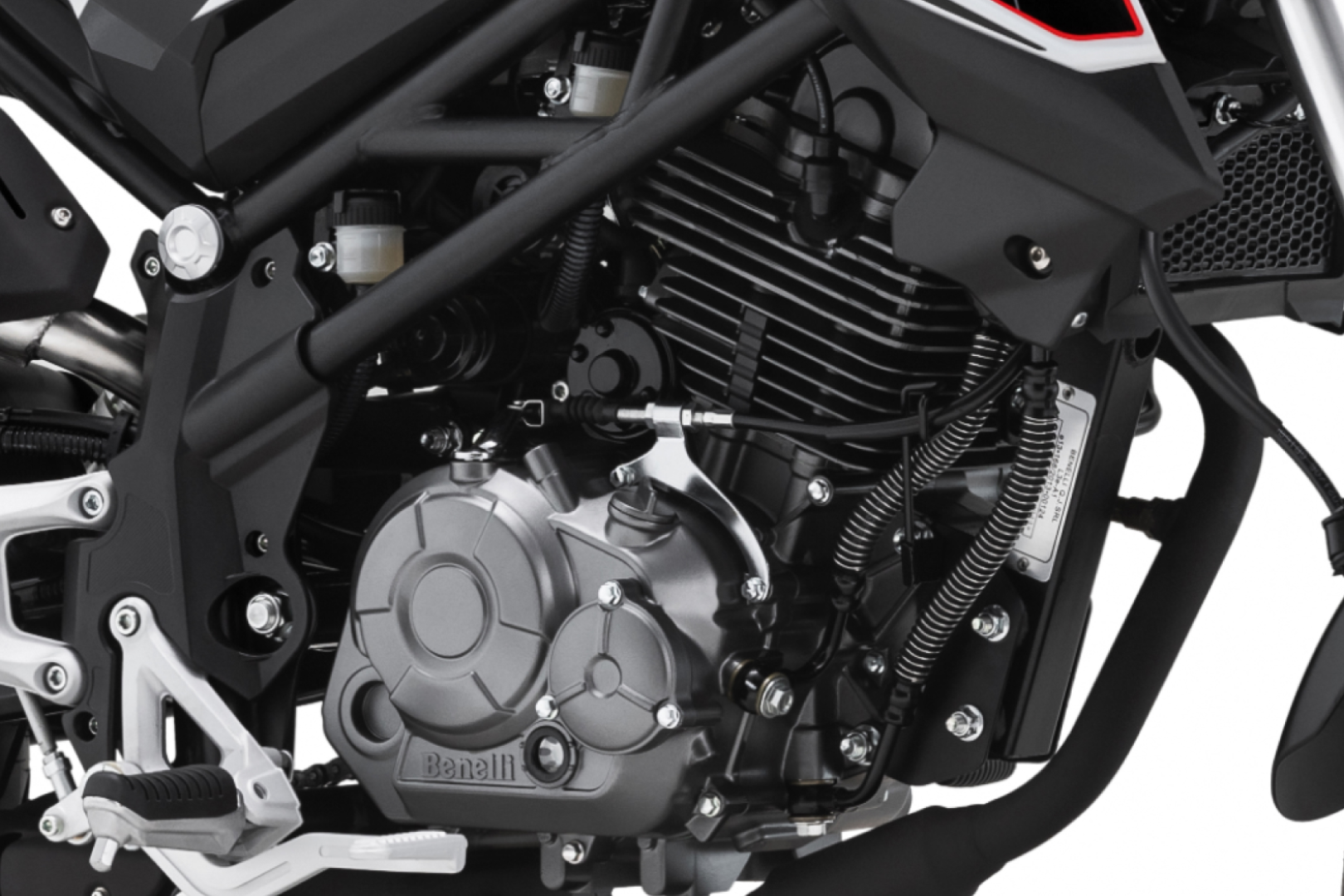

  • TYPE

    1-cylinder/4-stroke/4-valve

    Displacement (cc)

    125

    Bore x Stroke (mm)

    ø54×54.5

    Power

    8.2kW at 9500 r/min

    Max torque

    10N·m/7000 r/min

    Compression ratio

    9.8:1

    Fuel system

    EFI

    Valve train

    SOHC

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling system

    Air-cooled

    Ignition

    T.C.I.

  • Gearbox

    5-speed

    Final drive

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Steel trellis frame

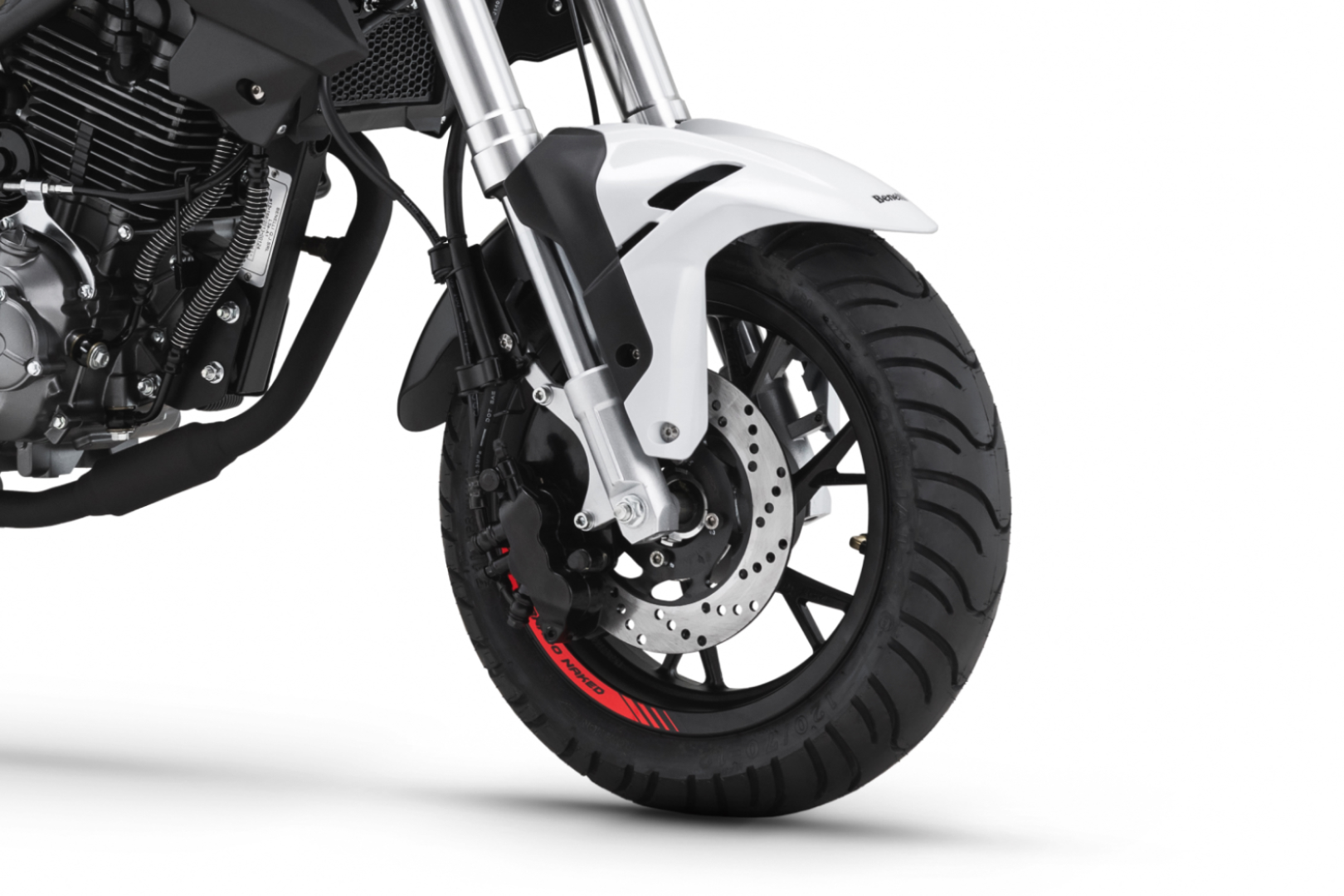

    Front wheel

    Aluminum alloy

    Front suspension travel (mm)

    120

    Front tyre

    120/70-12

    Front brake

    Disc

    Front brake diameter (mm)

    210

    Rear wheel

    Aluminum alloy

    Rear suspension

    Mono-shock-absorber

    Rear suspension travel (mm)

    28

    Rear tyre

    130/70-12

    Rear brake

    Disc

    Rear brake diameter (mm)

    190

  • Dry weight (kg)

    124

    Seat height (mm)

    780

    Overall length (mm)

    1770

    Overall width (mm)

    760

    Overall height (mm)

    1025

    Ground clearance (mm)

    160

    Wheelbase (mm)

    1215

    Fuel capacity (L)

    7.2

    Top speed (km/h)

    95

    Max load (kg)

    177

    Battery

    12V6Ah
